Honeywell Planeview Avionics Suite
Maximum range of approximately 4,350 nautical miles
Powered by two fuel-efficient Rolls-Royce Tay 611-8C Engines
Engines on RRCC
APU on MSP
Aft Galley
Forward & Aft Lavatory
FANS 1A / CPDLC / ADSB-Out
Airshow 4000
Apcela 5G Wifi Installed
Securaplane Exterior Cameras
88 Parameter FDR
External Cameras Upgraded to High Definition
Enhanced Navigation ASC059B
Total Hours: 5495.7 Hours
Total Landings: 3089 Landings
Engines Enrolled on Rolls Royce Corporate Care
Rolls Royce TAY611-8C
Engines: Engine 1
Serial Number: 85207
Time Since New: 5414.1 Hours
Engine Cycles: 3060 Cycles
Rolls Royce TAY611-8C
Engines: Engine 2
Serial Number: 85206
Time Since New: 5370.4 Hours
Engine Cycles: 3038 Cycles
CMP Maintenance Tracking
96-Mo Completed by Pentastar PTK – 10/23
144-Mo Completed by Pentastar PTK – 02/20
192-Mo Completed by Pentastar PTK – 10/23
Midlife Inspection Completed by Dallas Air Motive – 3/18
Engine Overhauls Due 09/27
Landing Gear Overhaul Due at 5000 Landings
Honeywell PlaneView Avionics
Honeywell 4-Tube EFIS w/DU-1310
Honeywell PlaneView IFCS Flight Director
Honeywell GP-500 Flight Guidance Panel
Honeywell Visual Guidance w/HUD & EVS
Dual Honeywell MRC-855A & Single NC-860 Comms w/8.33 Spacing
Dual Honeywell MRC-855A & Single NC-860 Navs w/FM Immunity
Triple Honeywell NZ-2000 FMS
Triple Honeywell IR-500 LASEREF V
Triple Honeywell Air Data Modules
Triple Honeywell MC-850 Multi-Function CDU’s
Triple Honeywell AV-900 Audio Panels
Triple Honeywell MAU-913 Modular Avionics Units
Dual Honeywell DC-884 Display Controllers
Honeywell MCS-7000 SATCOM
Honeywell Primus 880 Weather Radar
Simplified Display Unit (SFD)
Dual Honeywell RT-300 Radar Altimeter
Honeywell TCAS-2000 w/ 7.1 Upgrade
Aircell Axxess II Iridium Sat Phone
Dual Mason Cursor Controls
Micro Quick Access Recorder
L3 EBDI-4000 Radio Magnetic Indicator
L3 Cockpit Voice Recorder & Flight Data Recorder
110V Outlets in Cockpit
APU Enrolled on Honeywell MSP
APU Model: Honeywell GTCP 36-150
Serial Number: P-228
Total Hours: 5819.5 Hours
24-inch HD Monitor Above Credenza
Airshow 4000
Securaplane External Cameras
Apcela 5G ATG Wifi System
Upgraded Rockwell Collins CMS Video to High Definition
ASC99B – Planeview Avionics
ASC-912B Software Upgraded
DirecTV
XM Weather
14 Passenger Executive Configuration with Enhanced Soundproofing
Dune Leather seating Installed in 2014
Forward Cabin 4 place club with pullout tables
Mid Cabin 2 place club opposite 4 place divan
Aft Cabin 4 place conference opposite credenza
Aft Galley with high-temperature oven, microwave, and TIA coffee makers
Pommele Imbuia veneer woodwork with satin plating
Forward and Aft Lavatory
Divan Re-covered 2024

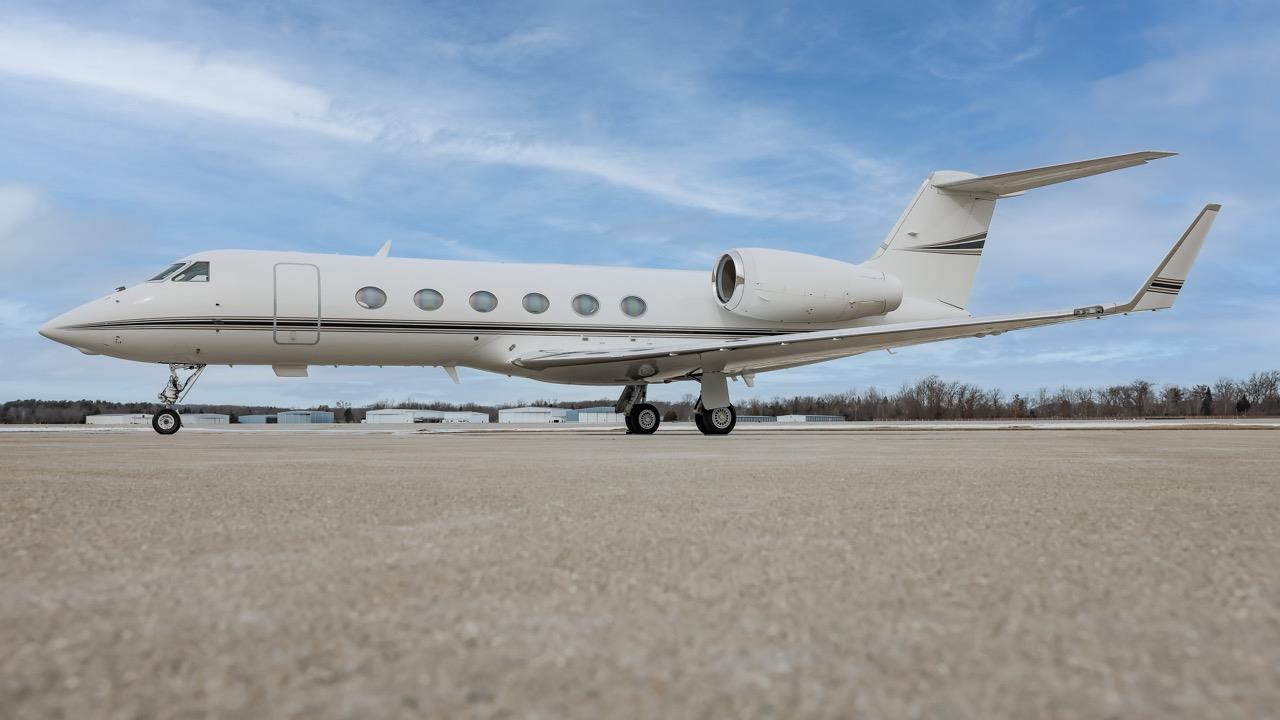

New Paint in 2015 by Gulfstream Savannah The base paint Color is Matterhorn White with a striking Midnight Green Primary stripe accented with a Spanish Gold pinstripe. A Gamma Grey shadow is accented with a Vegas Gold pinstripe.
